6 PCB Lamination Methods +5 PCB Lamination Design Steps

1.What is PCB lamination?

PCB (Printed Circuit Board) layering is a critical aspect of PCB design that involves the strategic arrangement of conductive layers within a board to achieve the desired electrical performance and mechanical strength. Here's an introduction to what PCB layering entails, focusing on signal layers, plane layers, and mixed layers:

1. Signal Layers:

• Signal layers are the conductive layers used to route electrical signals between components on the PCB.

• They are typically made of copper and are found on the outermost layers of the PCB, as well as internal layers.

• Signal layers facilitate the transmission of electrical energy and data between various electronic components.

2. Plane Layers:

• Plane layers, also known as power and ground planes, are dedicated layers that provide a common reference point for the signals and a return path for current.

• These layers help in reducing noise and ensuring stable power distribution across the PCB.

• Plane layers are usually made of a thicker copper to handle higher current loads and are often found on the inner layers of the board.

3. Mixed Layers:

• Mixed layers are a combination of signal and plane layers, designed to accommodate both routing of signals and power distribution.

• They offer flexibility in PCB design by allowing for the placement of both power and ground planes alongside signal traces.

• Mixed layers can be strategically placed to optimize the routing of signals and the distribution of power, minimizing interference and improving signal integrity.

In summary, PCB layering is the process of stacking these different types of layers—signal, plane, and mixed—to create a multi-layered PCB that meets the electrical, thermal, and mechanical requirements of a specific application. Proper layering is essential for achieving optimal performance, reliability, and miniaturization in electronic devices.

2.Why do PCB lamination?

PCB (Printed Circuit Board) layering is a critical process that involves the strategic arrangement of conductive and dielectric layers to meet the performance and mechanical requirements of a circuit. Here's an exploration of why PCB layering is essential and some key considerations:

Why PCB Layering is Important

1. Evolving Demands: As electronic devices become more complex and compact, the need for efficient PCB layering increases to accommodate the growing number of components and the intricate connections between them.

2. EMC Performance: PCB layering is one of the most critical factors in determining the electromagnetic compatibility (EMC) of a device. Proper layering helps in reducing electromagnetic interference (EMI) and improving the overall EMC performance 428.

3. Signal Integrity: Layering helps maintain signal integrity by providing controlled impedance paths, reducing crosstalk, and minimizing noise and reflections in high-speed signals.

4. Avoiding Discontinuities: Proper layering can prevent discontinuities in the signal path, which can cause signal loss or distortion.

5. Capacitive Decoupling and Flux Cancellation: Strategic layering allows for effective capacitive decoupling and cancellation of magnetic flux, which is vital for stable power supply and signal transmission.

6. Avoiding Unwanted Impedance and Loops: Careful PCB layering helps in avoiding unwanted impedance changes and loop formations that can lead to signal degradation.

Key Considerations for PCB Layering

1. Material Selection: The choice of dielectric material and copper foil can impact the electrical and thermal performance of the PCB. Different materials have varying dielectric constants and loss factors, which affect signal propagation and power distribution.

2. Manufacturability: The layering design must be feasible within the manufacturing process. Some complex layering configurations may require additional steps or specialized equipment.

3. Cost Implications: The number of layers and the complexity of the layering configuration can significantly affect the cost of the PCB. More layers and complex designs typically increase production costs.

4. Signal Routing: Efficient signal routing is crucial for high-speed and high-density circuits. Layering should allow for clear, direct paths for signal transmission with minimal crosstalk and interference.

5. Power and Ground Planes: The placement of power and ground planes is essential for stable power delivery and signal reference. They also provide shielding against EMI.

6. Signal Integrity: Layering should support the maintenance of signal integrity by minimizing impedance variations, reflections, and transmission losses.

In summary, PCB layering is a multifaceted aspect of PCB design that requires careful consideration of material properties, manufacturability, cost, and electrical performance. By addressing these factors, designers can achieve a PCB that meets the functional, reliability, and performance requirements of modern electronic devices.

3.The difference between standard lamination and HDI lamination

Standard lamination and High-Density Interconnection (HDI) lamination are two methods used in the manufacturing of printed circuit boards (PCBs), each with distinct features and applications.

Standard lamination typically involves a 2-4 layer core with 1-3 additional circuit layers applied sequentially to each side. The outer layers are connected using microvias, while the core uses drilled through vias. This method is well understood and widely used, forming the basis for many PCB designs .

On the other hand, HDI lamination is a more advanced technique that allows for higher circuit density and is essential for applications such as mobile communications and computer chip packaging. HDI boards can have a thicker center subpart, ranging from 6-26 layers, with 1-2 additional circuit layers applied on each side using microvias. A key feature of HDI lamination is the use of buried vias, which are plated through holes that do not extend to an outer layer, allowing for more compact designs and improved signal integrity .

HDI lamination also encompasses a variety of structures, including standard HDI, high layer count HDI, blind via boards, and combinations of these technologies. These structures can handle complex layouts with minimal layer assignment and reduce board thickness, which is particularly valuable for devices with strict form factors or mechanical advantages .

One of the main differences between standard and HDI lamination lies in the way stress is managed within the board during thermal excursions. The coefficient of thermal expansion (CTE) mismatch between the glass reinforcement, copper, and resin can lead to issues such as resin cracks, delamination, and voids, especially in HDI structures where microvias are stacked on buried vias .

In summary, while both standard and HDI lamination techniques are used to create multilayer PCBs, HDI lamination offers a higher level of complexity and density, making it suitable for more advanced electronic devices where space is at a premium and performance requirements are high

4.PCB stacking method

In the realm of Printed Circuit Board (PCB) manufacturing, the lamination process is pivotal in determining the board's performance, reliability, and cost-efficiency. Here's an introduction to PCB lamination methods, focusing on key aspects:

1. Materials: The choice of materials is fundamental in PCB lamination. Common materials include FR-4, a woven glass fabric and epoxy laminate, known for its balance of electrical, mechanical, and thermal properties. Other materials like polyimide, PTFE, and high Tg (glass transition temperature) laminates are used for their specific thermal or electrical characteristics, especially in high-reliability or high-frequency applications.

2. Manufacturability: PCB lamination must consider the manufacturability of the board. This involves the ease of processing the materials, the ability to achieve fine features, and the compatibility with various manufacturing processes such as drilling, plating, and etching. HDI (High-Density Interconnect) boards, for instance, use microvias and sequential lamination techniques that require advanced manufacturing capabilities.

3. Cost: The lamination method significantly impacts the cost of PCB production. Standard lamination with through-hole vias is generally more cost-effective for lower complexity boards. However, HDI lamination, while offering higher density and performance, incurs higher costs due to the complexity of the process and the use of specialized materials and equipment.

4. Signal Routing: Lamination affects signal routing capabilities. With standard lamination, routing is typically straightforward but may be limited by the board's layer count. HDI lamination allows for more complex routing schemes, including blind and buried vias, which can connect different layers without penetrating the entire board thickness.

5. Power and Ground Planes: The arrangement of power and ground planes is critical for signal integrity and electromagnetic interference (EMI) reduction. Laminated PCBs can integrate these planes within the board's structure, providing a stable reference for signals and improving power distribution. The choice of dielectric material and the number of layers can influence the effectiveness of these planes.

6. Signal Integrity: Signal integrity is maintained by minimizing crosstalk, reflections, and signal loss. Laminated PCBs with controlled impedance layers and precise trace routing can enhance signal integrity. HDI boards, with their ability to place traces and vias closer together, can achieve better control over signal paths and reduce transmission line effects.

In summary, the PCB lamination method is a multifaceted decision that involves a trade-off between material properties, manufacturability, cost, and performance. Advanced lamination techniques, such as HDI, offer superior capabilities in signal routing and integrity but at a higher cost and complexity. Each project must carefully consider these factors to select the most appropriate lamination approach for its specific requirements.

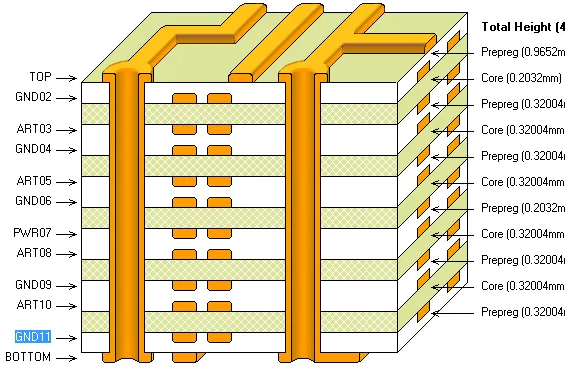

5.PCB laminated design steps

PCB (Printed Circuit Board) layer stack design is a critical process that involves several key steps to ensure optimal performance and manufacturability. Here's an introduction to the PCB layer stack design process:

1. Number of Layers: The first step in PCB stack design is determining the required number of layers. This decision is influenced by the complexity of the circuit, the need for signal isolation, and the board's space constraints. More layers can provide shorter and more direct routes for signals, but also increase the cost and complexity of manufacturing.

2. Layer Arrangement: Once the number of layers is decided, the arrangement or "stack-up" of these layers must be determined. The arrangement typically places signal layers alternating with power or ground planes to reduce crosstalk and provide signal stability. The outer layers are often dedicated to component placement, while the inner layers are used for routing and power distribution.

3. Layer Material Types: Selecting the right materials for each layer is essential. Core materials like FR-4 are common, but for high-frequency applications, materials with lower dielectric constants might be preferred. The choice of prepreg (a partially cured laminate) and copper foil thickness also plays a role in the board's electrical and thermal performance.

4. Routing and Vias: With the layer stack-up defined, the next step is to plan the routing of traces and the placement of vias. This involves creating a routing strategy that minimizes signal lengths and avoids crossing signal paths where possible. Vias, which connect different layers, are placed strategically to facilitate connections between layers without compromising the integrity of the board.

5. Dielectric and Copper Density: The dielectric constant and copper density are critical parameters that affect the board's electrical performance. A lower dielectric constant reduces signal propagation delay and crosstalk, while higher copper density improves conductivity and reduces resistance. The balance between these factors is crucial for achieving the desired signal integrity and power distribution.

6. Layer Management: Effective layer management involves ensuring that the stack-up is mechanically and electrically stable. This includes managing the thickness of the dielectric layers to prevent warping and ensuring that the copper distribution is balanced to avoid differential thermal expansion and stress on the board.

In conclusion, the PCB layer stack design is a meticulous process that requires careful consideration of electrical, mechanical, and thermal factors. Each decision in the design process impacts the board's performance, reliability, and cost. By following a systematic approach to layer stack design, engineers can create PCBs that meet the specific requirements of their applications.

6.PCB laminated design rules

PCB (Printed Circuit Board) layer stack design rules are a set of guidelines that ensure the reliability, performance, and manufacturability of the board. Here's an introduction to some key PCB layer stack design rules:

1. Even-Odd Rule: To minimize odd-mode parasitics, it's often recommended to use an even number of conductive layers, with a ground plane closest to the signal layers.

2. Signal-to-Ground Plane Proximity: Signal layers should be adjacent to a ground plane to provide a return path for currents, reducing loop area and improving signal integrity.

3. Layer Pairing: Pairing signal layers with a ground or power plane directly beneath or above them can help in controlling impedance and reducing crosstalk.

4. Impedance Control: For controlled impedance traces, the distance between the signal layer and the reference plane(s) must be tightly controlled, which may influence the choice of dielectric material and prepreg thickness.

5. Thermal Management: Power and ground planes can also serve as thermal conductors, so their placement should consider the heat dissipation requirements of the board.

6. Crosstalk Minimization: To reduce crosstalk between signal layers, maintain sufficient spacing between signal traces and consider the use of guard traces or shielding.

7. Differential Pair Routing: For differential signaling, keep the pair traces close together and parallel to minimize differential skew and external interference.

8. Vias and Microvias: Use vias and microvias strategically for layer-to-layer connections, considering their impact on signal integrity and manufacturing yield.

9. Balanced Copper Weight: Aim for a balanced distribution of copper across the layers to avoid warping and ensure even thermal expansion.

10. Mechanical Stability: Consider the mechanical stability of the stack-up, especially for boards with an uneven number of layers, to prevent delamination and warping during manufacturing and use.

11. Material Consistency: Use consistent dielectric materials across the stack-up to avoid discontinuities that can cause signal reflection and impedance mismatch.

12. Fabrication Tolerances: Adhere to fabrication house-specific tolerances for layer thickness, trace width, and spacing to ensure manufacturability.

13. EMI and RFI Shielding: For boards with sensitive components or high-speed signals, consider the use of internal or external shielding layers to reduce electromagnetic interference (EMI) and radio frequency interference (RFI).

14. Layer-to-Layer Registration: Ensure accurate layer-to-layer registration, especially for fine-pitch components and high-density interconnects.

15. Design for Testability (DFT): Incorporate test points and accessible signal nodes to facilitate in-circuit testing and debugging.

By following these PCB layer stack design rules, designers can create robust boards that meet the electrical, mechanical, and thermal requirements of their applications while ensuring manufacturability and reliability.
