PCB Classification Complete Solution

PCB Classification Complete Solution

#01

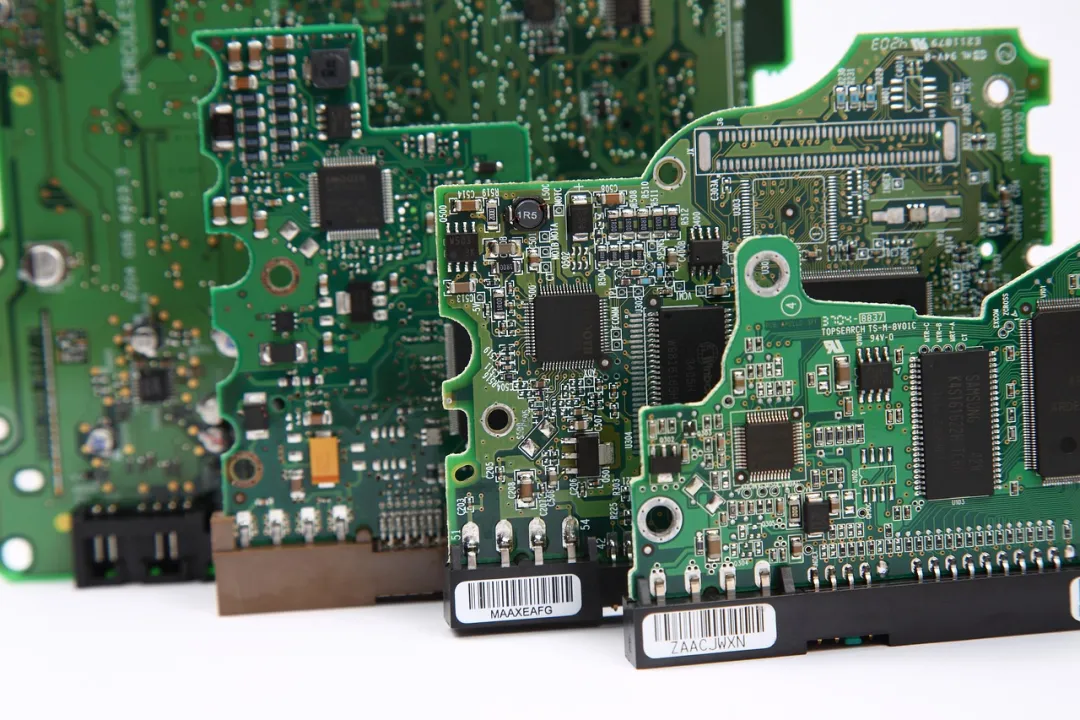

Printed Circuit Board

Printed Circuit Boards (PCBS) are at the heart of modern electronic devices and are found almost everywhere, from smartphones to industrial machinery. Despite their ubiquity, not all PCBS are the same. There are many types of PCBS, each designed to meet specific application needs. This article will explore the various PCB board types and their characteristics and applications.

#02

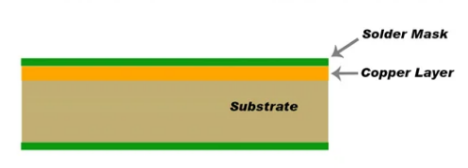

Singloe-Sided PCB

Single-Sided PCB is the most basic and simplest type of PCB. As the name suggests, they have a conductive copper layer on only one side. This type of PCB is commonly used for simple electronic devices.

#03

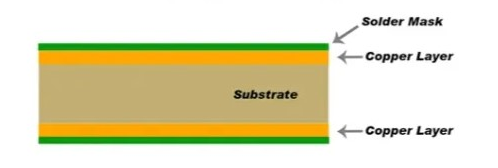

Double-Sided PCB

Double-Sided PCB has a conductive copper layer on both sides of the board. This allows components to be mounted on both sides and connections to be made between the two sides through holes (holes drilled through the plate). Two-sided PCBS are more complex than single-sided PCBS and can support more advanced electronic devices.

#04

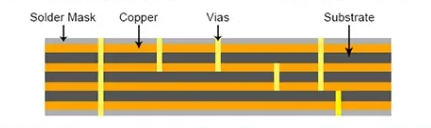

Multi-layer PCB

Multi-layer PCB consists of three or more conductive copper layers that are bonded together by an insulating layer. These PCBS are used in complex electronic devices that require a high level of performance and miniaturization. Multilayer PCBS can have 4 layers, 6 layers, 8 layers or even more layers.

#05

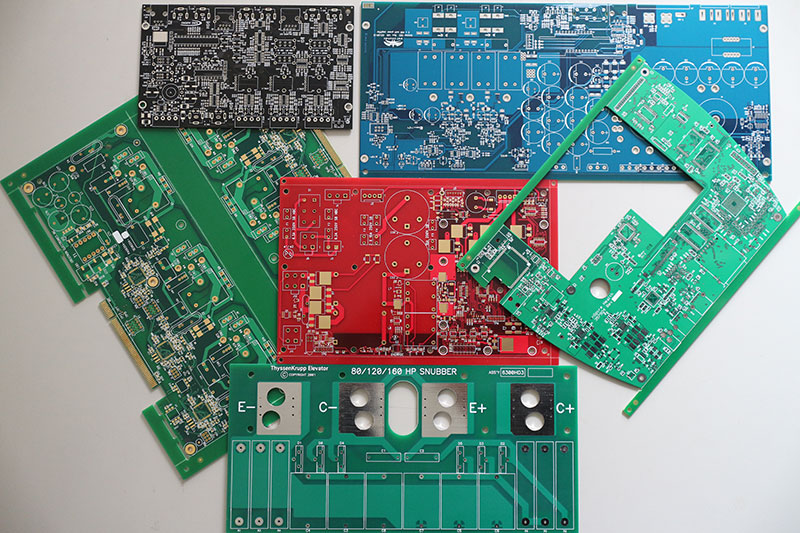

Rigid PCB

Rigid PCBS are made of solid substrate material and cannot be bent or twisted. They are the most widely used type of PCB for a variety of applications, from simple devices to complex systems. Rigid PCBS can be single-sided, double-sided or multi-layered.

#06

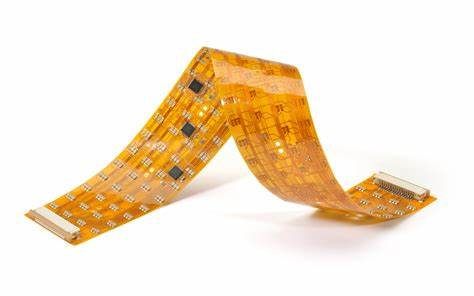

Flex PCB

Flexible PCBS, also known as flexible printed circuits (FPC), are made of flexible plastic materials such as polyimides. This type of PCB can be bent, folded, or twisted, making it suitable for applications with limited space or irregular shapes. Flexible PCBS can be single-sided, double-sided or multi-layer.

#07

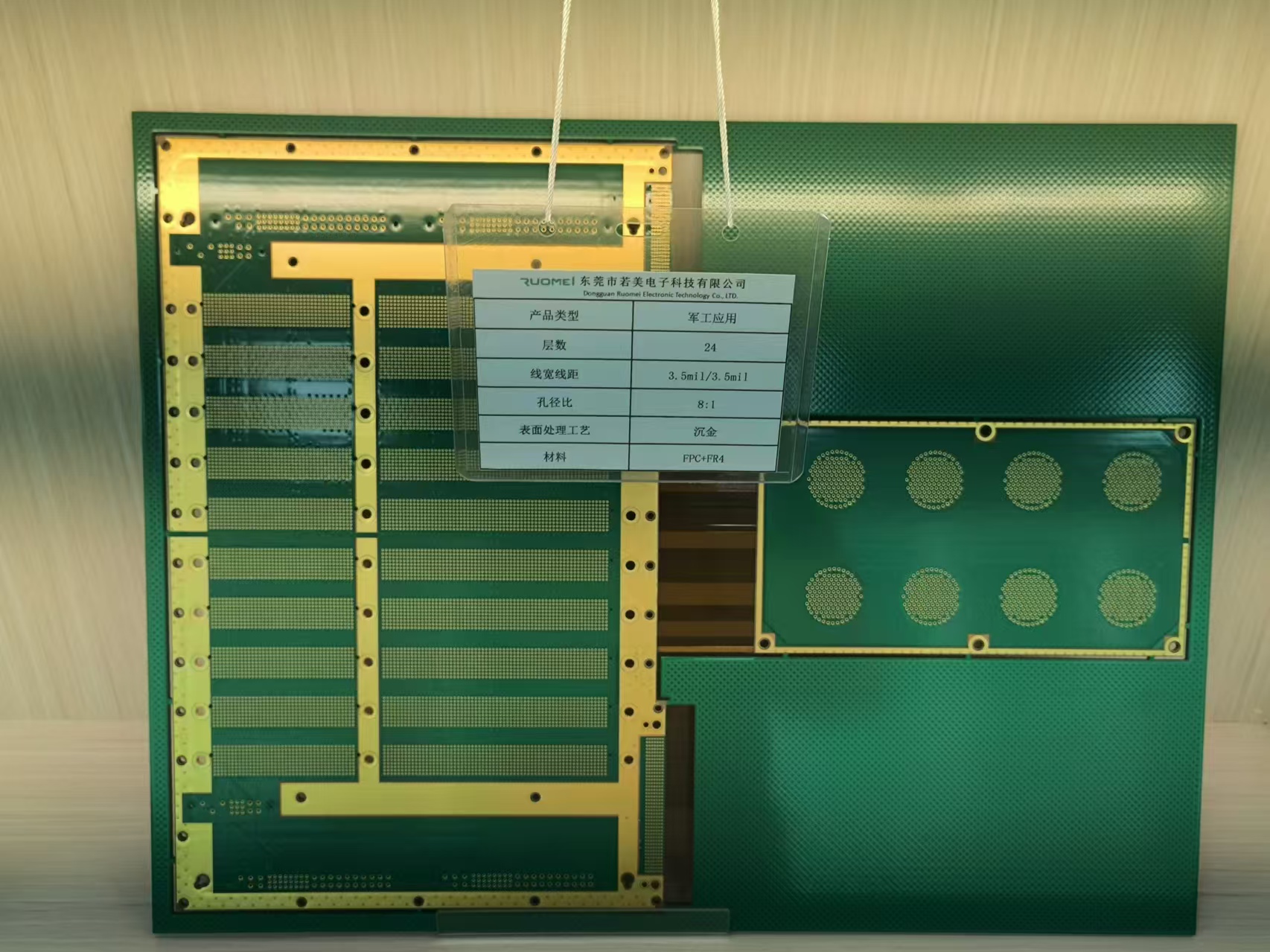

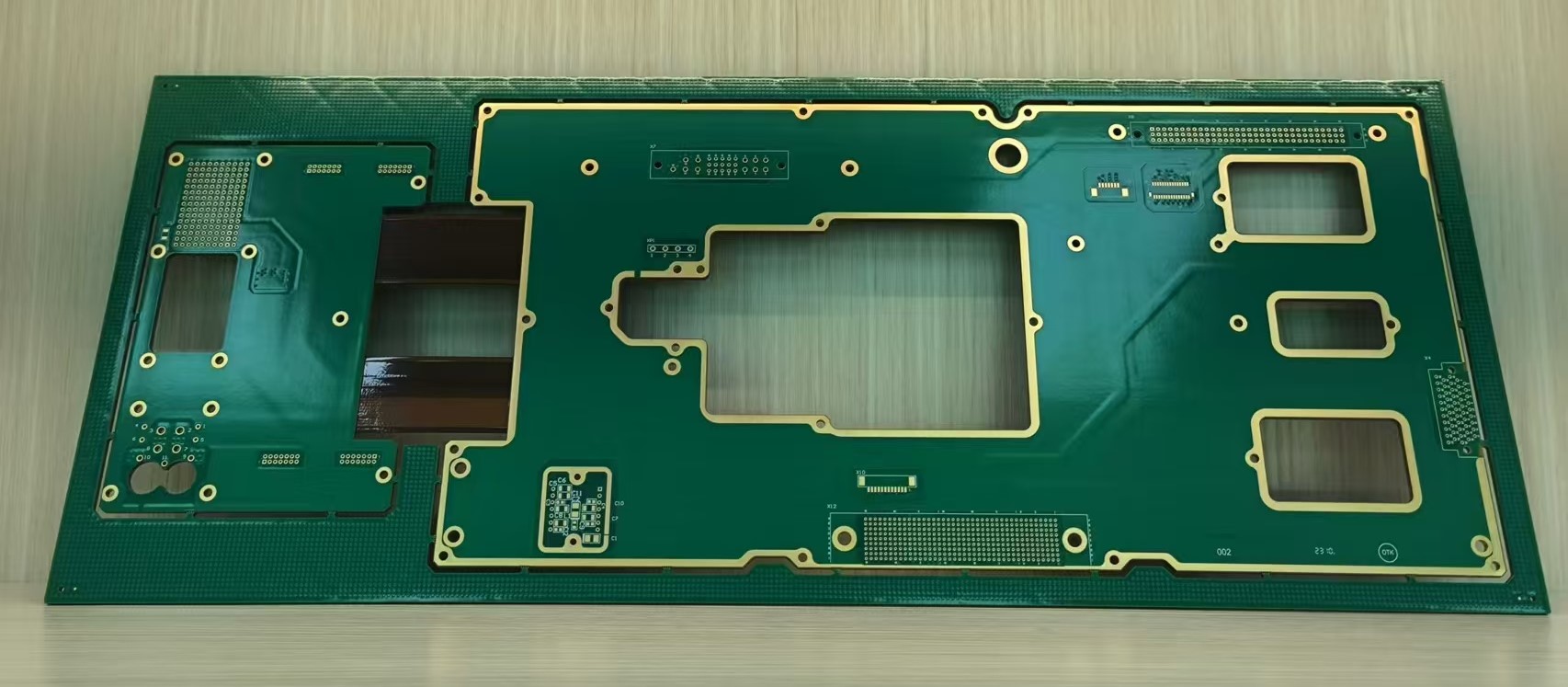

Rigid-Flex PCB

Rigid and Flexible PCB combines the characteristics of rigid PCB and flexible PCB. They consist of rigid and flexible parts that allow the board to bend in some areas while maintaining structural integrity in others. This type of PCB is used in complex electronic systems that require flexibility and durability.

#08

High Frequency PCB

High Frequency PCBS are designed to operate at high frequencies, typically in the range of 500MHz to 2GHZ. These PCBS are used in applications that require fast signal transmission, such as radio frequency (RF) and microwave equipment. High frequency PCBS require special materials and design considerations to minimize signal loss and interference.

#09

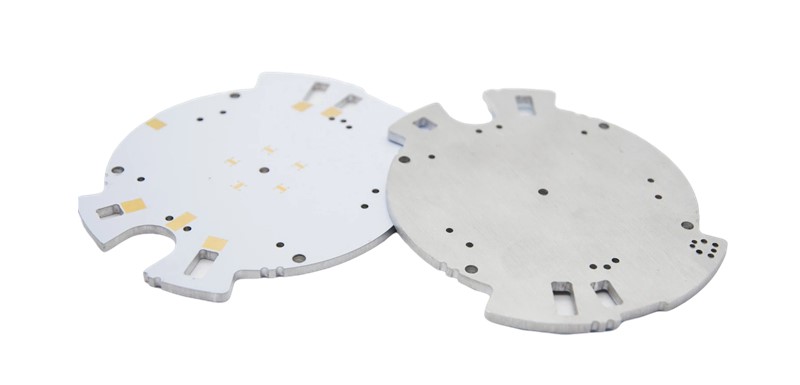

Aluminum Based PCB

Aluminum-Based PCBS use aluminum as the substrate material instead of the traditional FR4. This type of PCB has excellent heat dissipation performance and is ideal for devices that require efficient heat dissipation. Aluminum-based PCBS are commonly used in high power applications.
