PCB Technology Development History

PCB technology development history

The printed circuit board (PCB) is an essential component in modern electronics, serving as the foundation upon which electronic components are mounted and interconnected. Its origins can be traced back to the early 20th century when the need for more compact and efficient electronic devices became apparent. The evolution of the PCB has been a remarkable journey, driven by technological advancements and the ever-increasing demand for smaller, more powerful, and more reliable electronic devices.

The Early Years: From Point-to-Point Wiring to Printed Circuits

The printed circuit board (PCB) is an essential component in modern electronics, serving as the foundation upon which electronic components are mounted and interconnected. Its origins can be traced back to the early 20th century when the need for more compact and efficient electronic devices became apparent. The evolution of the PCB has been a remarkable journey, driven by technological advancements and the ever-increasing demand for smaller, more powerful, and more reliable electronic devices.

The Early Years: From Point-to-Point Wiring to Printed Circuits



In the early days of electronics, components were interconnected using a technique known as point-to-point wiring. This method involved manually connecting each component to the others using individual wires, which was a time-consuming and error-prone process. As electronic devices became more complex, the point-to-point wiring approach became increasingly impractical.

The first significant step towards the development of the printed circuit board was the introduction of the “printed circuit” concept in the 1920s. This early form of PCB consisted of a flat insulating surface with conductive paths printed or etched onto it, allowing components to be soldered directly to the board.

Key Developments in the Early Years

Year

Development

1925

Charles Ducas patents the first printed circuit in the United States.

1936

Paul Eisler creates the first practical printed circuit board at Britain’s Central Research Laboratories.

1943

The United States Army uses printed circuit boards in the proximity fuse for anti-aircraft munitions during World War II.

1948

The National Bureau of Standards (now NIST) publishes a report on printed circuit techniques.

The Rise of the Modern PCB: From Single-Sided to Multilayer

As the demand for more complex electronic devices grew, the limitations of single-sided printed circuit boards became apparent. The introduction of double-sided and multilayer PCBs marked a significant advancement in the field.

Double-Sided PCBs

Double-sided PCBs, introduced in the 1960s, allowed for the placement of components on both sides of the board, effectively doubling the available space. This innovation enabled more compact designs and reduced the overall size of electronic devices.

Multilayer PCBs

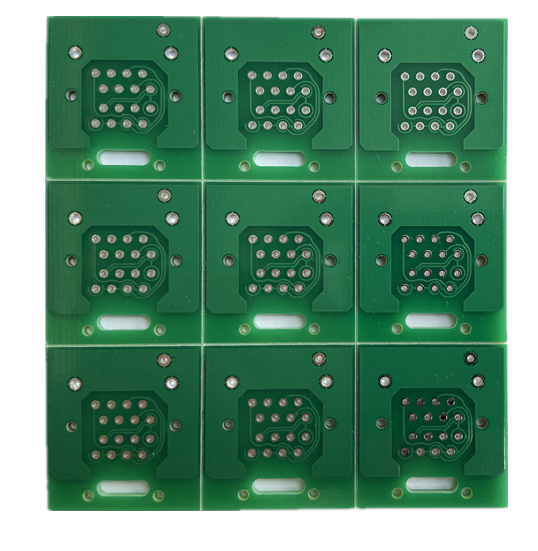

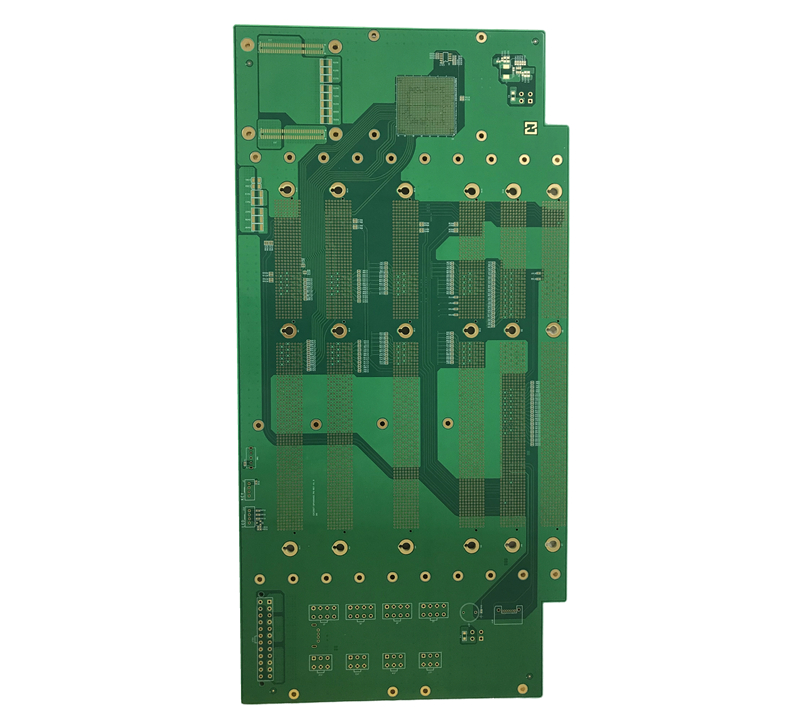

The next major milestone was the development of multilayer PCBs, which consisted of multiple conductive layers sandwiched between insulating materials. These boards allowed for even greater component density and more complex interconnections, paving the way for the miniaturization of electronic devices and the development of high-performance computing systems.

Advancements in PCB Manufacturing Processes

As the demand for PCBs increased, so did the need for more efficient and reliable manufacturing processes. The introduction of various manufacturing techniques revolutionized the PCB industry, enabling mass production and improved quality control.

Subtractive Manufacturing Processes

The earliest PCB manufacturing processes were subtractive, involving the removal of unwanted copper from a copper-clad substrate. These processes included:

Chemical Etching: A photoresist material is applied to the copper-clad board, and the desired circuit pattern is transferred using a photographic process. The exposed copper is then etched away using chemicals, leaving the desired circuit pattern.

Mechanical Milling: A computer-controlled milling machine is used to remove the unwanted copper from the substrate, creating the desired circuit pattern.

Additive Manufacturing Processes


In contrast to subtractive processes, additive manufacturing techniques involve building up the conductive patterns on a substrate, rather than removing material. These processes include:

Electroplating: A thin layer of conductive material is deposited onto a non-conductive substrate using an electrochemical process.

Direct Metallization: A conductive pattern is printed or deposited directly onto a non-conductive substrate using various techniques, such as inkjet printing or aerosol deposition.

Surface Mount Technology (SMT) and Miniaturization

The introduction of surface mount technology (SMT) in the 1980s revolutionized the PCB industry by enabling the use of smaller components and higher component densities. Instead of inserting components through holes in the PCB, SMT components are mounted directly onto the surface of the board, allowing for more compact designs and improved performance.

SMT, combined with advances in PCB manufacturing processes and materials, paved the way for the miniaturization of electronic devices, leading to the development of portable electronics, such as laptops, smartphones, and wearable devices.

Modern PCB Trends and Future Developments

The PCB industry continues to evolve, driven by the demand for smaller, more powerful, and more efficient electronic devices. Some of the current trends and future developments in the field of PCBs include:

High-Density Interconnect (HDI) PCBs

HDI PCBs feature extremely fine conductive traces and high-density interconnections, enabling the integration of more components and functionality within a smaller footprint. These boards are essential for the development of advanced electronics, such as high-performance computing systems and cutting-edge consumer electronics.

Rigid-Flex PCBs

Rigid-flex PCBs combine the properties of rigid and flexible circuits, allowing for the integration of rigid sections with flexible interconnections. This technology is particularly useful in applications where flexibility and compactness are required, such as in wearable devices and robotics.

Embedded Component Technology

Embedded component technology involves embedding passive components, such as resistors and capacitors, directly into the PCB substrate, further reducing the overall size and improving the performance of electronic devices.

Advanced Materials and Substrates

The development of new materials and substrates for PCBs is an ongoing area of research. Advanced materials, such as liquid crystal polymers (LCPs) and low-loss dielectric materials, offer improved electrical properties, thermal performance, and dimensional stability, enabling the design of high-frequency and high-speed electronic devices.

Frequently Asked Questions (FAQ)

What is a printed circuit board (PCB)? A printed circuit board (PCB) is a flat insulating board with conductive paths printed or etched onto it, allowing electronic components to be mounted and interconnected.

What was the first significant step towards the development of the PCB? The first significant step was the introduction of the “printed circuit” concept in the 1920s, where conductive paths were printed or etched onto a flat insulating surface, allowing components to be soldered directly to the board.

What is the difference between single-sided, double-sided, and multilayer PCBs? Single-sided PCBs have conductive paths and components on one side of the board, while double-sided PCBs have components on both sides. Multilayer PCBs consist of multiple conductive layers sandwiched between insulating materials, allowing for even greater component density and more complex interconnections.

What is surface mount technology (SMT)? Surface mount technology (SMT) involves mounting electronic components directly onto the surface of the PCB, rather than inserting them through holes in the board. This technology enabled the miniaturization of electronic devices and higher component densities.

What are some current trends and future developments in the PCB industry? Some current trends and future developments include high-density interconnect (HDI) PCBs, rigid-flex PCBs, embedded component technology, and the development of advanced materials and substrates for improved electrical properties and thermal performance.
