In the realm of electronic manufacturing, two prominent assembly techniques have revolutionized the way electronic devices are produced: Surface Mount Technology (SMT) and Dual In-line Package (DIP). These technologies have not only transformed the manufacturing process but also significantly impacted the miniaturization, performance, and reliability of electronic products.

Surface Mount Technology (SMT)

SMT is a method of mounting electronic components on the surface of a printed circuit board (PCB) without inserting them through holes. It is widely recognized for its ability to increase the density of components on a PCB, which is crucial for modern electronic devices that demand compactness and high performance.SMT has revolutionized the electronics industry by enabling the production of smaller, lighter, and more complex electronic devices. It is particularly suitable for high-density assembly and mass production.

1.Key Features of SMT

• High Density: Allows for a greater number of components to be placed in a smaller area.

• Automation: The process is highly automated, reducing labor costs and improving production efficiency.

• Speed: SMT processes are significantly faster, which is essential for mass production.

• Reliability: Surface-mounted components offer better thermal performance and reduced risk of damage during assembly.

2.SMT Operation Process: A Step-by-Step Guide

Surface Mount Technology (SMT) is a leading method used in the electronics industry for mounting electronic components onto the surface of printed circuit boards (PCBs). The SMT process involves several key steps, including solder paste printing, component placement, reflow soldering, and automatic optical inspection (AOI). Here's a detailed look at each stage of the SMT operation process.

1. Solder Paste Printing

The SMT process begins with solder paste printing, a critical step that lays the foundation for component attachment.

• Purpose: Apply a precise amount of solder paste onto the PCB's designated pads.

• Equipment: Stencil printers or screen printers are used to ensure accurate deposition.

• Process: The printer uses a stencil with apertures that match the component pads. The paste is squeegee spread across the stencil, filling the apertures to create the required patterns on the PCB.

2. Component Placement

Following solder paste application, the next step is component placement, where individual components are precisely placed onto the PCB.

• Purpose: Position surface-mount components (SMCs) onto the printed solder paste.

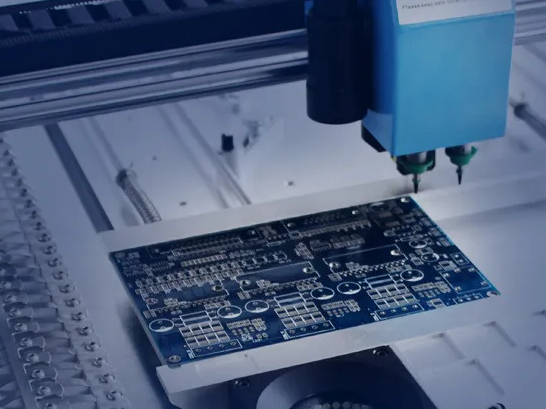

• Equipment: Pick-and-place machines are automated devices that place components accurately.

• Process: The machine uses a vacuum nozzle to pick up components from their feeders and place them onto the PCB, aligning with the solder paste pads.

3. Reflow Soldering

After components are placed, the PCB undergoes reflow soldering, where the solder paste is melted to secure components in place.

• Purpose: To melt the solder paste, creating a solid joint between the component and the PCB.

• Equipment: Reflow ovens with multiple heating zones are used for this thermal process.

• Process: The PCB enters the reflow oven, which has a controlled temperature profile. The heat activates the solder paste, causing it to melt and flow, creating a strong bond once it cools and solidifies.

4. Automatic Optical Inspection (AOI)

Once the soldering is complete, the PCB is inspected using automatic optical inspection to ensure quality and accuracy.

• Purpose: To verify that components are correctly placed, oriented, and soldered.

• Equipment: AOI machines use high-resolution cameras and advanced software for inspection.

• Process: The AOI scans the PCB, comparing the actual solder joint and component placement against the expected parameters. It identifies defects such as missing components, incorrect orientation, or solder bridging.

3.SMT precautions:

In the SMT (Surface Mount Technology) process, there are several key considerations to ensure optimal performance and quality of the electronic assemblies. Here are some important points to keep in mind:

1. Component and PCB Baking: This step is crucial to remove moisture that may have been absorbed by the PCB and components during storage. Baking helps prevent thermal shock and potential damage during the reflow process.

2. Static Electricity Protection: SMT components are sensitive to electrostatic discharge (ESD), which can cause damage or failure. It's essential to implement proper ESD protection measures, such as using anti-static mats, wrist straps, and ensuring a controlled environment .

3. Solder Paste Printing Parameters: Controlling the printing parameters is vital for consistent solder paste deposition. Factors like stencil design, squeegee pressure, and speed can significantly affect the quality of the solder paste print .

4. Reflow Oven Temperature Profile: The temperature profile in the reflow oven is critical for achieving good solder joints. It typically includes preheat, soak, reflow, and cool-down zones. Each zone must be carefully controlled to avoid defects like insufficient soldering, tombstoning, or solder bridging .

5. Inspection and Testing: After the reflow process, it's important to perform visual inspections and functional testing to ensure that the components are correctly placed, soldered, and functioning as intended .

6. Cleaning: Post-solder cleaning helps remove any residual flux or other contaminants that could cause issues like corrosion or reduced electrical conductivity .

7. Conformity Coating: Applying a conformal coating can protect the assembled PCB from environmental factors, improving the overall reliability and longevity of the electronic device .

By paying close attention to these aspects of the SMT process, manufacturers can achieve high-quality electronic assemblies with improved reliability and performance.

DIP (Dual In-line Package) technology is a method of packaging electronic components such as integrated circuits (ICs), offering several key benefits for traditional electronic applications.

4.DIP Technology Overview:

• Definition: DIP is a type of electronic component housing that contains an IC or other devices, featuring a rectangular plastic or ceramic body with two parallel rows of connecting pins or leads protruding from the long sides .

• Structure and Principle: The DIP package consists of a chip carrier board, pins, a package shell, and a base plate. The chip is placed in the center, with pins soldered on both sides, forming a two-row arrangement. The package housing is made of plastic or metal to protect the chip and pins, and the base plate is used to fix the package shell to the circuit board .

Key Features of DIP Packages:

1. Cost-Effectiveness: DIPs are inexpensive to manufacture and purchase compared to more advanced packages.

2. Compact Size: They maximize PCB space usage with their dense, rectangular shape.

3. Easy Assembly: Straightforward to manually insert and solder onto PCBs.

4. Good Ruggedness: Durable plastic or ceramic housing protects internal components from damage.

5. Widely Standardized: Established standard pin spacing and dimensions ensure compatibility.

6. Universal Socket Mounting: Sockets allow interchangeability and eliminate the need for soldering.

7. Flexibility: Available with pin counts from under 10 up to 64 to suit many chips.

8. Thermal Performance: Molded plastic or ceramic body transfers heat adequately.

9. Visible Orientation: The notch shows proper DIP alignment at a glance .

Applications:

• Prototyping: Ideal for prototyping, hobby electronics, and educational projects due to through-hole mounting and lower cost.

• Legacy Support: Replacement DIPs maintain old equipment and classic computer systems.

• Simple Electronics: Many basic ICs, like 555 timers and 7400-series logic chips, come in DIP format.

• DIY and Hobbyists: Hobby electronics enthusiasts often work with DIP components and through-hole PCBs .

Advantages in Traditional Electronics:

• DIP packaging provides a simple through-hole mounting method, making it accessible for small-scale electronics projects and educational purposes.

• Its compact size and standardized pin arrangement make it suitable for a wide range of electronic devices, from consumer electronics to industrial applications.

• The robust construction of DIP packages ensures reliability and durability in traditional electronic systems where physical protection of components is necessary.




5.DIP operation process:

DIP technology remains a popular choice for its ease of use, versatility, and cost-effectiveness in traditional electronic applications, despite the rise of surface-mount technologies.

DIP (Dual In-line Package) technology is a method of packaging electronic components such as integrated circuits (ICs), known for its two rows of pins that protrude from the sides of the rectangular package, allowing for insertion into a circuit board or socket. Here's an overview of the DIP operation process, highlighting key steps and considerations:

1. Manual Insertion (Hand Soldering)

In this step, DIP components are manually inserted into their respective holes on the PCB. This process requires careful alignment to ensure the pins are correctly positioned for soldering. Special attention is given to the strength of insertion to avoid damaging the PCB or surrounding components, as well as ensuring the consistency of component orientation, position, and height 222.

2. Wave Soldering

Wave soldering is the process where the PCB, now with inserted DIP components, is passed over a wave of molten solder. This method is used to create a mechanical and electrical connection between the component pins and the PCB pads. The wave height should be adjusted to ½-⅓ of the board thickness to prevent issues such as solder bridging or component damage due to excessive wave height 221.

3. Secondary Operations

After soldering, secondary operations may be performed. These can include trimming excess pin length, reworking solder joints, or adding additional components that were not inserted during the initial DIP process.

4. In-Circuit Test (ICT)

ICT is a testing method used to verify the functionality of the soldered components and the PCB as a whole. This automated test checks for correct soldering, continuity, and the presence of short circuits or opens in the circuit.

Key Considerations for DIP Processing

• Solderability: Ensuring the board and components have good solderability and are free from contamination.

• Soldering Temperature: Adjusting the soldering temperature to avoid issues like cold solder joints or oxidation of the solder due to excessive heat.

• Wave Height: Properly setting the crest height to prevent soldering defects.

• Solder Activity: Enhancing the activity of the solder to ensure effective heat transfer and removal of impurities.

DIP technology remains important in the PCBA industry, particularly for applications that do not require the miniaturization offered by SMT techniques. It is especially useful in prototyping, hobby electronics, and for maintaining legacy systems where through-hole mounting is more practical

6.DIP precautions:

When it comes to the DIP (Dual In-line Package) process in electronics manufacturing, there are several key considerations to ensure the quality and reliability of the final product:

Electrostatic Discharge (ESD) Protection

• Importance: ESD can cause irreversible damage to sensitive electronic components.

• Best Practices: Implement ESD-safe work environments, including the use of ESD wrist straps, smocks, and ESD mats. Train personnel on ESD prevention techniques.

Equipment Status Checks

• Routine Inspections: Regularly inspect equipment for wear and tear to prevent malfunctions during production.

• Maintenance: Conduct preventive maintenance schedules to ensure equipment operates at peak performance.

Soldering Quality Control

• Temperature Management: Monitor and control soldering temperatures to avoid thermal damage to components or PCBs.

• Inspection Techniques: Utilize visual inspections, X-ray inspections, and automated optical inspection (AOI) systems to detect solder defects such as cold joints, solder bridges, or insufficient fillets.

Secondary Operations

• Trimming: Post-solder operations may include trimming of excess leads to ensure proper fit and reduce the risk of short circuits.

• Cleaning: Clean the assembled PCBs to remove flux residues, which can affect the performance and reliability of the electronic device.

In-Circuit Test (ICT)

• Testing: Perform ICT to verify the electrical functionality of the soldered joints and the PCB as a whole, ensuring there are no opens, shorts, or incorrect components.

DIP Process Flow

1. Manual Insertion: Carefully insert DIP components into the PCB, ensuring correct orientation and alignment.

2. Wave Soldering: Pass the PCB through a wave of molten solder to establish mechanical and electrical connections.

3. Cooling: Allow the solder to cool and solidify, forming stable joints.

4. Inspection and Quality Control: Conduct thorough inspections to identify and rectify any defects.

By adhering to these guidelines, manufacturers can achieve a high-quality DIP process, resulting in reliable and robust electronic products. Proper handling, equipment maintenance, and quality control are essential for the successful implementation of DIP technology in the production of electronic devices.

7.About SMT and DIP

SMT (Surface Mount Technology) and DIP (Dual In-line Package) are two primary methods used in the assembly of electronic components on circuit boards. Here's a comparison of the two technologies, highlighting their advantages, disadvantages, and suitable application scenarios:

SMT Technology

Advantages:

• Miniaturization: SMT components are significantly smaller, allowing for more compact device designs.

• Automation: SMT lends itself well to automated assembly processes, increasing production efficiency.

• Cost-Effectiveness: Due to automation, the cost of production is generally lower, especially for high-volume production.

• Performance: SMT can support higher frequencies and offer better electrical performance.

Disadvantages:

• Equipment Cost: The initial investment for SMT equipment, such as pick-and-place machines and reflow ovens, can be high.

• Inspection Difficulty: Small components are harder to inspect, and specialized equipment for inspection can be expensive.

• Damage Susceptibility: Smaller components are more prone to damage from static electricity or rough handling.

Suitable for: High-density applications, mass production, and devices requiring high-speed signal transmission.

DIP Technology

Advantages:

• Reliability: DIP components provide a strong mechanical connection, making them reliable for applications with physical stress.

• Economical for Small Batches: DIP can be more cost-effective for low-volume production due to less reliance on expensive equipment.

• Easy Repair: Components can be more easily replaced if they fail, as they are inserted into the board.

Disadvantages:

• Space Consumption: DIP components are generally larger, leading to larger circuit boards.

• Manual Assembly: DIP assembly is often more manual, which can be time-consuming and less efficient.

• Limited Miniaturization: Not suitable for high-density applications due to physical size constraints.

Suitable for: Applications requiring mechanical robustness, small-batch production, and situations where component replacement is frequent.

In summary, the choice between SMT and DIP depends on the specific requirements of the electronic assembly, including factors such as component size, production volume, cost considerations, and the application's specific needs. SMT is often the preferred choice for its efficiency and compactness, while DIP remains a viable option for certain specialized applications where its advantages are more relevant.

8.Practical application case

SMT (Surface Mount Technology) and DIP (Dual In-line Package) are two primary methods used in the assembly of electronic components on circuit boards. Here's an overview of their applications and some examples:

SMT Applications and Examples

1. Consumer Electronics: SMT is extensively used in smartphones, tablets, and laptops for their compact and lightweight designs. The miniaturization enabled by SMT allows for sleek and portable devices.

2. Automotive Electronics: SMT finds application in engine control units, infotainment systems, and Advanced Driver-Assistance Systems (ADAS) due to its reliability and performance in compact spaces.

3. Medical Devices: Miniaturized and reliable SMT components are ideal for medical equipment such as pacemakers, defibrillators, and diagnostic devices where precision and safety are critical.

4. Industrial Equipment: Industrial automation systems, robotics, and power electronics benefit from the efficiency and compactness of SMT components.

5. Telecommunication: Telecommunication infrastructure, including base stations, routers, and optical networking equipment, relies on SMT for high-speed signal transmission and dense circuitry.

DIP Applications and Examples

1. Prototyping and Hobby Electronics: DIP components are ideal for prototyping and hobby projects due to their ease of manual assembly and adjustment. They allow for quick changes and debugging, as mentioned in the article by CUI Devices 322.

2. Legacy Support: DIP switches are used for maintaining old equipment and classic computer systems, providing a reliable and tested solution for legacy applications.

3. Simple Electronics: Basic ICs like 555 timers and 7400-series logic chips often come in DIP format, making them accessible for a wide range of simple electronic devices.

4. Education and Training: DIP switches are used in educational settings to teach PCB assembly and circuit fundamentals, as they provide a hands-on approach to learning electronics.

5. Configuration and Control: DIP switches are used in various applications to configure and control different settings, such as the address of a microcontroller or selecting different power sources for redundancy.

In summary, SMT is preferred for high-density, miniaturized, and mass-produced electronic devices, while DIP remains relevant for applications requiring manual assembly, prototyping, and in scenarios where legacy support is necessary.

9.Future development trend

In the realm of electronics manufacturing, both SMT (Surface Mount Technology) and DIP (Dual In-line Package) have been pivotal in shaping the industry. Here's an exploration of the latest developments and future trends for these technologies, with a focus on miniaturization and high-density interconnect techniques:

Latest Developments

1. Miniaturization: There's a continuous drive towards reducing the size of electronic components. For instance, the use of 01005 (Imperial) packages is becoming more prevalent despite the challenges in production processes, as they offer significant area savings compared to larger components like 0402 and 0201 344.

2. Fine-pitch Technology: The industry is moving towards finer pitches for active components, with 0.3mm pitch gaining popularity over the mainstream 0.4mm pitch. This shift requires careful PCB design and may necessitate a dip fluxing process for optimal assembly quality 344.

3. Advanced Materials: The development of new materials, such as organic substrates and liquid crystal polymer (LCP), is enabling further miniaturization while maintaining electrical performance and reliability 335.

4. 3D Integration: Techniques like Package on Package (PoP) and through-silicon vias (TSV) are allowing for three-dimensional integration of components, which is crucial for compact designs 335.

5. Hybrid Techniques: Combining SMT and DIP on the same PCB is becoming more common, leveraging the advantages of both for high-density assembly and mechanical robustness 334.

Future Trends

1. High-density Interconnects: The industry is expected to see further advancements in high-density interconnect technologies, with a focus on reducing component-to-component spacing to achieve even more compact designs 344.

2. SMT Evolution: Future developments in SMT are likely to include enhancements in automation and precision assembly, catering to the demands of IoT devices and wearable technology 342.

3. DIP Innovations: Despite the rise of SMT, DIP is expected to see innovations in automated assembly techniques and the use of new materials that could make it more competitive in specific applications 334.

4. Sustainability: There's a growing trend towards environmentally friendly materials and manufacturing processes, which could influence the development of both SMT and DIP components and processes 334.

5. Customization and Flexibility: As the market demands more personalized and flexible electronic products, the ability to customize SMT and DIP components and processes will become increasingly important 339.

In conclusion, the future of SMT and DIP technologies lies in innovation that supports miniaturization, sustainability, and the ability to meet the diverse needs of an ever-evolving electronics industry.

Future SMT and DIP technologies are likely to see the following innovations to adapt to changing market needs:Advances in SMT technology for microassembly requirements: As technology has evolved, SMT has been used to produce microassemblies of smaller and smaller PCB components. This technology allows components to be welded automatically, reducing the need for space between components, while also requiring the development of strategies to avoid PCB overheating and welding defects. Environmental sustainability: SMT technology will continue to adapt to new industry standards, such as the use of lead-free solder, to meet the need for environmental sustainability and RoHS compliant solder use. Innovation in DIP packaging technology: DIP packaging technology will meet stringent performance requirements in harsh environments through enhanced thermal management solutions and improved material composition. Advanced integrated circuit packaging: As chip sizes decrease each year and functions are integrated, new system architectures and designs will continue to emerge. 3D printing technology: The application of 3D printing technology in the field of electronics manufacturing will eliminate the need for flat circuit boards, allowing the production of innovative designs and shapes that cannot be achieved through traditional means. Immersive technology: The adoption of immersive technology can overcome human errors and improve manufacturing efficiency, such as the augmented reality kit provided by inspectAR for PCB manufacturing and workflow testing. Innovation in materials and processes: The semiconductor industry will explore innovative materials beyond silicon, such as graphene and gallium nitride, to create faster, more powerful, and more energy efficient chips. Energy efficiency: With increasing global energy problems, the demand for energy efficient chips is expected to surge. Companies may prioritize the development of low-power processors, memory optimization technologies, and innovative circuit designs to reduce power consumption and improve performance. The impact of AI and automation in the SMT industry: AI algorithms can optimize component placement, enable real-time fault detection and predictive maintenance, thereby improving production efficiency and product quality. Growth in supply chain services: As automation and robotics grow in manufacturing and SMT becomes more efficient and cost-effective, supply chain services are expected to grow significantly. These innovations will enable SMT and DIP technologies to meet the future electronics manufacturing industry's demand for miniaturization, integration, sustainability and high performance.
