Printed Circuit Board Assemblies (PCBA) are at the heart of every modern electronic device, linking components that make technology function. Yet, even minor design errors can result in costly delays or product failure. PCBA design mistakes, if left unaddressed, can seriously affect performance and manufacturing timelines.
In this article, we’ll walk you through seven design mistakes that often lead to PCBA failure. You'll learn how to identify and fix these issues to ensure more reliable and efficient designs.

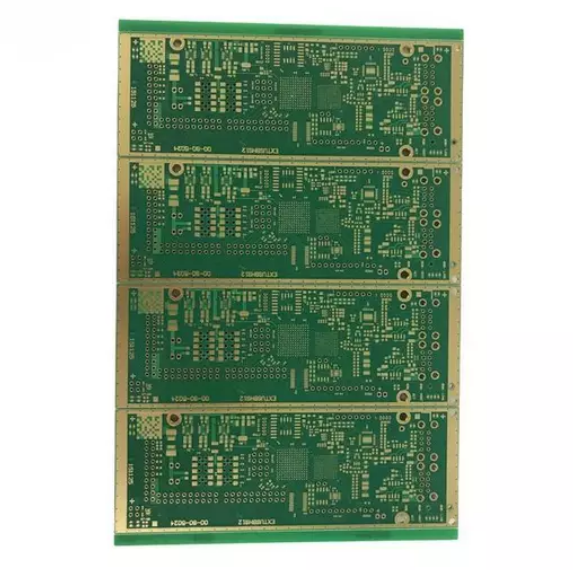

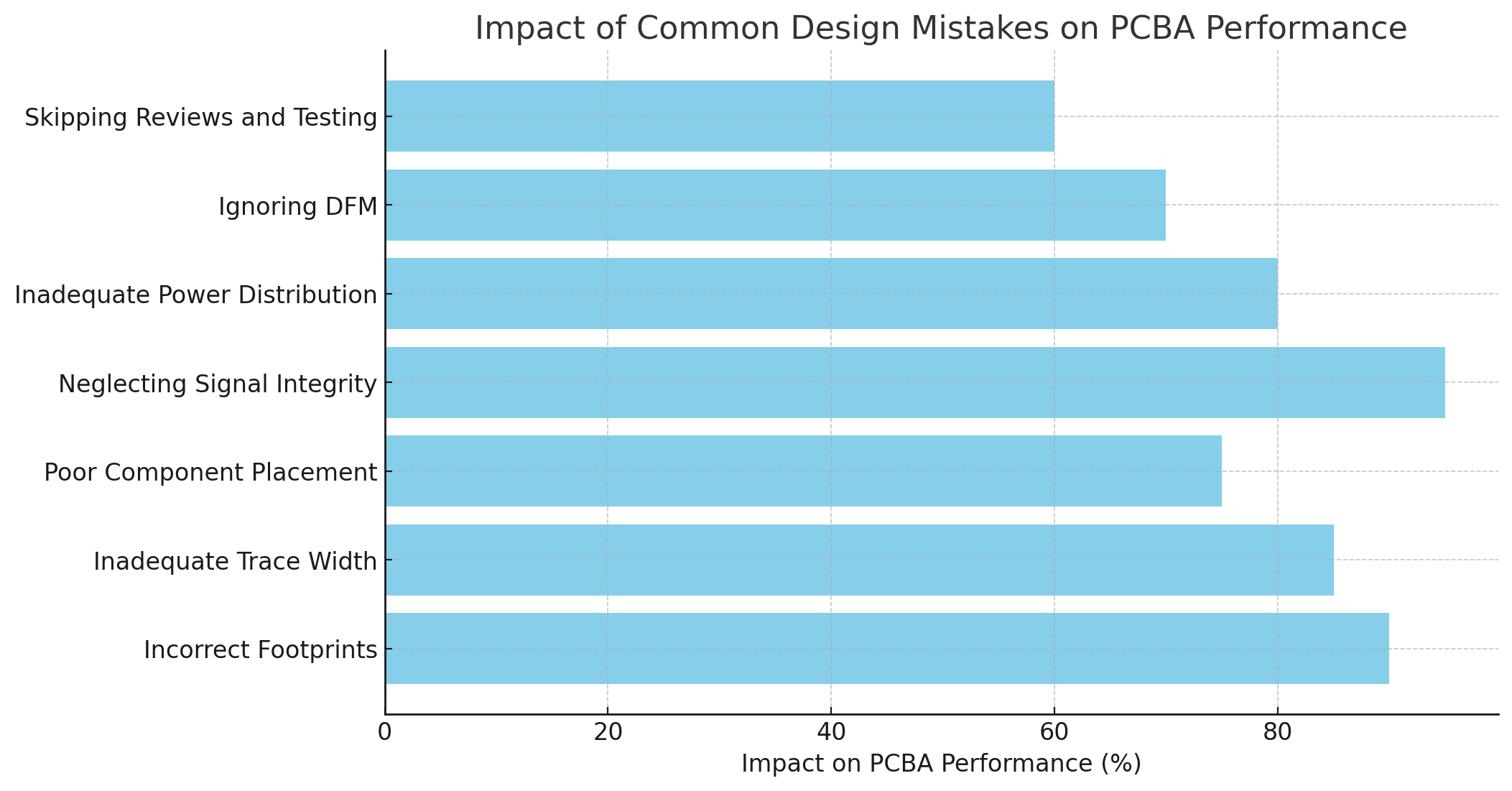

Design Mistake | Impact on PCBA Performance | Solution |
Incorrect Footprints | Misalignment of components, poor solder joints | Verify footprints with manufacturer data |
Inadequate Trace Width | Overheating, electrical failure, and signal interference | Use trace width calculators and proper design tools |
Poor Component Placement | Signal degradation, increased trace lengths, thermal issues | Place components to minimize trace lengths and heat buildup |
Neglecting Signal Integrity | Data corruption, system malfunction | Implement proper routing and grounding techniques |
Inadequate Power Distribution | Voltage drops, unstable operation, noise | Place decoupling capacitors near power pins and use power planes |
Ignoring DFM | Increased production costs, manufacturing difficulties | Follow DFM guidelines and collaborate with manufacturers |
Skipping Reviews and Testing | Uncaught errors, reduced reliability | Conduct thorough design reviews and real-world testing |
In PCB design, the footprint refers to the layout of a component on the board, including its pads, shapes, and spacing. It ensures that the component can be properly placed and soldered onto the board. A common mistake is using an incorrect footprint, which may result in misaligned components or soldering problems. The right footprint is essential for ensuring the component fits correctly, the pads are aligned, and reliable electrical connections are made.
Incorrect footprints are one of the most frequent mistakes in PCBA design. Designers may use a standard footprint from a library, assuming it will work for all components, but this can lead to errors. If the footprint size is incorrect, it can cause components to misalign during assembly. This results in poor solder joints and potential failures in the final product. For instance, if a component's footprint is too small, the pads may not align with the component's leads, causing soldering issues or damage to the part.
To avoid footprint mistakes, always verify the footprint dimensions with the component's datasheet. Many component manufacturers provide recommended footprints that are tailored to their products. If you use a component from a library, ensure the footprint matches the manufacturer's specification. Using these pre-approved footprints reduces the risk of errors. Additionally, a design review, where a second pair of eyes checks for footprint alignment, can help catch mistakes before production.
Modern CAD tools, such as Altium Designer or Eagle, offer footprint libraries and footprint verification tools. These tools automatically flag discrepancies between the component datasheet and the footprint in your design. Using such software ensures that the design matches the manufacturer’s specifications and minimizes errors.

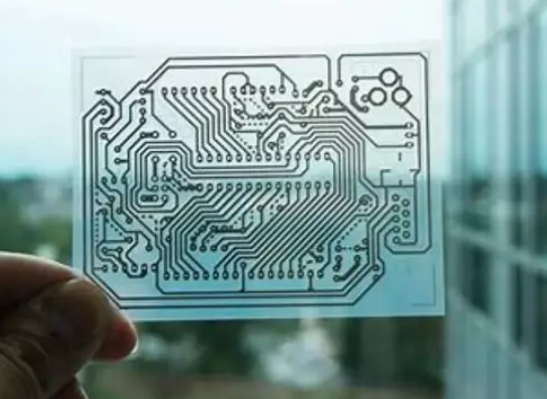

In PCB design, trace width is crucial for carrying current between components. If the trace width is too narrow for the current, it can overheat and result in a board failure. Conversely, if the trace is too wide, it can waste space and increase manufacturing costs. Calculating the correct trace width is essential to ensure the board's performance is optimal and that current flows safely through the PCB without causing thermal issues.
Using traces that are too narrow can lead to overheating, as they may not be able to carry the required current. This can result in board failure and potentially permanent damage to the components. On the other hand, traces that are too wide waste valuable space and can make the PCB unnecessarily large and more expensive to manufacture. It's important to strike the right balance in trace width for both functional and cost-effective designs.
To calculate the proper trace width, tools like IPC-2221 and trace width calculators are available online. These tools use factors like current, copper thickness, and the permissible temperature rise to determine the optimal trace width. For example, a 1A current on a 1 oz copper PCB may require a trace width of 0.5 mm, but a higher current requires proportionally wider traces. Ensuring accurate trace widths will prevent overheating and power loss.
In addition to trace width, trace spacing is equally important. If traces are placed too closely together, it can cause short circuits or crosstalk, which could lead to system malfunctions. Proper spacing ensures that signals are not compromised and prevents electrical interference. A common mistake is underestimating the minimum trace spacing, which can be detrimental to the overall integrity of the PCB.
Component placement is a critical factor in PCB design. Placing components in the wrong locations can degrade signal quality and affect the performance of the board. For example, placing components that handle high-frequency signals far apart can result in longer traces, which can introduce noise or signal delays. Proper placement minimizes trace lengths and ensures that signals travel efficiently with minimal interference.
Thermal management is another essential aspect of component placement. Components that generate heat, such as power regulators or processors, should be spaced out to allow for heat dissipation. If heat-producing components are placed too close to one another, it can cause localized overheating and damage to the PCB and components. Using thermal vias, heat sinks, and spreading components across the board can help manage heat more effectively.
To optimize component placement, group related components close to each other. For example, keep capacitors near the components they decouple to reduce trace lengths. Similarly, high-speed components should be placed near each other to minimize trace lengths and improve signal integrity. Utilizing auto-placement tools in CAD software can speed up this process, but manual review is still necessary to ensure that placement is optimal.
Signal integrity refers to the preservation of the signal as it travels through the PCB traces. Issues like signal reflection, noise, and crosstalk can significantly affect the performance of high-speed circuits. Poor signal integrity can lead to data corruption, system malfunctions, and even complete failure of the board in critical applications.
Signal integrity problems often arise from improper routing of high-speed signals, inadequate grounding, or using mismatched trace impedance. For example, routing traces at 90-degree angles can cause signal reflections, while poor grounding can increase the susceptibility to electromagnetic interference (EMI). To maintain signal integrity, it is essential to use proper routing techniques and ensure that the ground plane provides a low-impedance return path.
To avoid signal integrity issues, maintain impedance control by calculating the correct trace width and ensuring it matches the required impedance. Additionally, use continuous ground planes and minimize the use of vias in high-speed signal paths. Keep traces short and straight, and avoid 90-degree angles. These practices will minimize noise and improve the reliability of high-speed signals.
A well-designed power distribution network (PDN) ensures stable operation by providing clean, consistent power to all components. Poor PDN design can lead to voltage drops, noise, and unstable operation. Components like decoupling capacitors are essential for filtering high-frequency noise and stabilizing the power supply. If these are not properly placed, the board can experience erratic behavior or fail entirely.
One of the most common mistakes in power distribution is placing decoupling capacitors too far from the power pins of components. This reduces their effectiveness in filtering out high-frequency noise. Similarly, inadequate power planes or traces that are too narrow for the current can lead to voltage drops and instability.
To design an effective PDN, place decoupling capacitors as close as possible to the power pins of components. Use multiple capacitors with different values to filter a broad range of frequencies. Additionally, design wide power traces or use power planes to ensure that current flows smoothly and efficiently. This will reduce voltage drops and ensure stable power distribution.
Design for Manufacturability (DFM) refers to designing PCBs with manufacturing processes in mind to reduce production costs and avoid errors. Ignoring DFM can lead to costly production issues, such as difficulties in assembly or defects that require rework. Adhering to DFM principles ensures that the design can be easily and efficiently manufactured, saving time and money.
Typical DFM errors include insufficient copper-to-edge clearance, which can expose copper during board depanelization, or using vias that are too close to component pads, causing solder bridges. These mistakes can result in production delays and increase manufacturing costs.
To avoid DFM issues, follow your manufacturer’s DFM checklist and perform DFM checks early in the design process. Collaborate with the PCB manufacturer to ensure that your design aligns with their manufacturing capabilities. This can help avoid common issues like insufficient annular rings or small drill sizes that could hinder production.
Even experienced PCB designers can overlook issues in the design. A thorough design review can catch these mistakes early, preventing costly revisions later. Having peers or third-party engineers review the design ensures that no critical errors are missed.
Design reviews can help catch common errors such as incorrect via placements, poor component alignment, or overlooked thermal management issues. These mistakes can have serious consequences on the board's functionality or manufacturability.
Once the design is complete, it’s essential to test prototypes under real-world conditions. Using testing tools like oscilloscopes and multimeters can help identify potential issues with the PCB. Subjecting the prototypes to stress tests, such as thermal cycling and vibration tests, ensures that the board will perform reliably in its intended application.
By avoiding common PCB design mistakes, such as incorrect footprints and inadequate trace widths, you can ensure reliable and manufacturable PCBs. Proper component placement, signal integrity, and power distribution are key to achieving high-quality designs. Following industry guidelines and collaborating with manufacturers helps mitigate these issues.
At Ruomei Electronic, we offer high-quality PCBA solutions that ensure optimal performance and reliability, helping businesses reduce costs and enhance product efficiency.
A: PCBA (Printed Circuit Board Assembly) is a critical part of electronics, connecting and supporting components. It ensures the proper functioning of devices, making its design crucial for reliability and performance.
A: Incorrect footprints can cause misaligned components or poor solder joints, leading to assembly issues and reduced reliability in the final product.
A: Proper trace width ensures the safe flow of current without overheating. Incorrect trace widths can lead to electrical failures and inefficient power distribution.
A: Maintain proper routing, use continuous ground planes, and ensure impedance control to avoid signal degradation, reflections, and interference.
A: A well-designed power distribution network ensures stable voltage and current, preventing fluctuations that could impact component performance and reliability.
