PCBA (Printed Circuit Board Assembly) is fundamental to modern electronics, from smartphones to industrial equipment. Even minor defects during production can lead to major failures or financial losses. Adhering to quality control standards ensures PCBA performance and reliability.
In this article, we will explore the importance of quality control in PCBA manufacturing. You'll learn the key standards and best practices to maintain high-quality production.
Quality control in PCBA manufacturing is critical for maintaining the electrical functionality of the final product. Without robust quality control, issues such as short circuits, open circuits, or poor signal integrity can emerge. For instance, if a solder joint is improperly made, it can result in intermittent connections, which can severely affect product performance. By adhering to quality control standards, manufacturers can ensure that all components on the board are properly placed and soldered, guaranteeing the final product operates as intended.
Effective quality control helps identify defects early in the production process, reducing the need for costly rework or scrapping. This not only lowers production costs but also improves yield—the percentage of successfully assembled boards that meet the quality standards. By minimizing errors during production, manufacturers can save time, reduce material waste, and increase the overall efficiency of their operations.
Products that meet high-quality standards are more likely to perform reliably over time, increasing customer satisfaction. High-quality PCBAs can withstand environmental stresses such as temperature changes, humidity, and vibrations. By ensuring durability through quality control standards, manufacturers can build trust with customers and reduce product returns due to failure, ultimately enhancing brand reputation.
Benefit | Description |
Reduced Defects | By catching issues early, quality control reduces defects in the final product. |
Lower Production Costs | Early detection and correction of defects save on rework and waste. |
Improved Product Reliability | Ensures that PCBA products function correctly over time. |
Customer Satisfaction | Higher quality standards lead to fewer product returns and higher customer trust. |
The first step in maintaining quality control in PCBA production is the design review. Design for Manufacturability (DFM) principles are essential at this stage to ensure the design is feasible for assembly. The use of Design Rule Check (DRC) tools can help identify potential issues in the layout, such as trace width violations or unconnected pads, before the design goes to fabrication. A thorough design review lays the foundation for a successful production process, helping prevent costly mistakes later.
Choosing the right materials is a critical component of PCBA quality control. Materials like FR-4 (a popular PCB substrate) and copper must meet industry standards for performance, including electrical conductivity, mechanical strength, and durability. Manufacturers should only source materials from certified suppliers and ensure that these materials comply with relevant certifications such as IPC-6012 and RoHS. Rigorous supplier quality management can help avoid future issues with material defects that may lead to assembly failures.
Before production begins, all raw materials, including PCB substrates and components, must undergo a comprehensive inspection. This includes verifying that components match the bill of materials (BOM), checking for component damage, and confirming that all parts meet required specifications. Visual checks, micrometer measurements, and certification reviews are common practices at this stage. Ensuring that all incoming materials are compliant with quality standards prevents issues later in the production process.
Accurate solder paste application and component placement are crucial for achieving high-quality PCBA. Automated pick-and-place machines are used to place components precisely onto the board, with some machines offering vision systems to verify correct orientation. Likewise, solder paste must be applied evenly to the pads to ensure strong, reliable connections. Automated optical inspection (AOI) systems can be used to detect placement errors, missing components, or insufficient solder paste coverage, further ensuring high-quality standards are met.

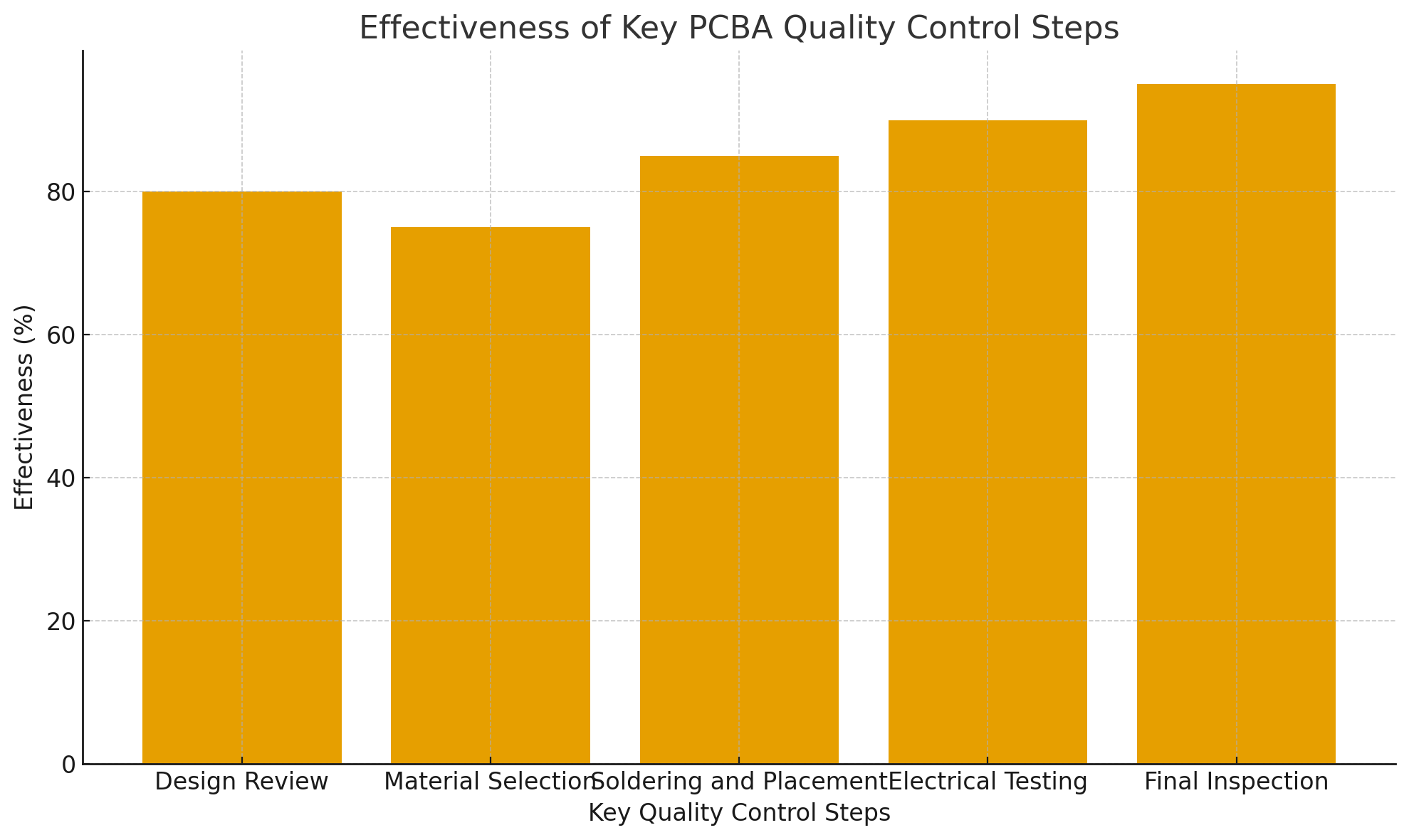

Step | Description | Importance |
Design Review | Ensuring manufacturability by checking design rules and component layout. | Prevents early design errors and reduces the risk of manufacturing defects. |
Material Selection | Choosing the right materials such as substrates and solder. | Affects long-term product reliability and performance. |
Soldering and Component Placement | Ensuring proper component placement and solder joint quality. | Guarantees solid electrical connections and functionality. |
Electrical Testing | Verifying electrical connections like continuity and resistance. | Confirms that the PCBA performs as expected under electrical load. |
Final Inspection | Using automated optical and X-ray inspections to detect visual defects. | Detects hidden issues and ensures consistency across the production batch. |
Electrical testing ensures the functionality of the PCBA by verifying that all connections are intact and meet the required specifications. Types of electrical tests include continuity testing, insulation resistance, and functional testing. Continuity testing checks for open circuits, while insulation resistance testing ensures there are no shorts between adjacent traces. Functional testing simulates real-world operating conditions to verify that the PCBA performs as expected.
Automated Optical Inspection (AOI) is one of the most effective methods for identifying visual defects in PCBA. AOI systems use high-resolution cameras to scan the board for issues such as misaligned components, poor solder joints, or missing components. By performing AOI inspections at key stages of assembly, manufacturers can quickly detect and correct defects before they affect the final product.
For complex, high-density components such as Ball Grid Arrays (BGAs) and Quad Flat No Pins (QFNs), traditional visual inspection methods may not be sufficient. X-ray inspection allows manufacturers to examine the internal structure of these components and check for defects such as solder voids, unconnected pins, or misaligned pads. This non-destructive testing ensures that the internal connections of BGAs and QFNs are intact and meet the required standards.
Testing Method | Description | Purpose |
Electrical Testing | Includes continuity checks and insulation resistance tests. | Ensures electrical connections are intact and functioning. |
Automated Optical Inspection (AOI) | Uses cameras and software to inspect for visual defects. | Identifies misaligned components and solder joint issues. |
X-ray Inspection | Inspects internal components like BGAs for hidden defects. | Detects problems in densely packed components. |
Thermal and Vibration Testing | Simulates real-world conditions by testing the PCBA under stress. | Ensures long-term durability and reliability. |
Reflow soldering is one of the most common methods for attaching components to a PCBA. The temperature profile of the reflow oven must be carefully controlled to ensure that solder paste melts evenly and forms strong, reliable joints. A poorly controlled reflow process can lead to cold solder joints or insufficient solder coverage. By regularly calibrating the reflow oven and maintaining accurate temperature control, manufacturers can ensure consistent soldering quality.
Wave soldering is typically used for through-hole components, while hand soldering is employed for more intricate or small-scale tasks. In both cases, proper technique and attention to detail are crucial to ensure high-quality solder joints. Manual inspections should be performed to catch any defects such as cold joints, bridges, or misaligned components that may have been missed during automated processes.
After soldering, it is essential to inspect solder joints for defects. Techniques such as X-ray inspection and visual inspection with magnification tools can detect issues such as cold solder joints, bridging, or insufficient solder. Adhering to industry standards like IPC-A-610, which sets criteria for acceptable solder joint quality, ensures that the PCBAs meet the required performance and reliability standards.
Thermal cycling tests subject PCBAs to rapid temperature fluctuations to simulate real-world conditions. This testing helps identify potential weaknesses in solder joints, components, and materials that may fail when exposed to extreme heat or cold. Manufacturers use thermal cycling to ensure that the PCBA can operate reliably in different environmental conditions without failure.
PCBAs are often exposed to various environmental conditions during their lifecycle. Humidity and vibration tests simulate conditions like high humidity or mechanical stress to ensure that the PCBA remains functional and durable over time. Standards like MIL-STD-810 are commonly used to guide vibration testing in electronics. These tests help predict the longevity of PCBAs in different environments.
Burn-in testing is designed to identify latent defects by running the PCBA under maximum operational stress for an extended period. This helps manufacturers detect weaknesses in components that might not be apparent during standard testing. Burn-in testing is especially important for high-reliability products used in industries such as aerospace and medical devices.
The IPC-600 and IPC-6012 standards provide guidelines for the acceptability of printed boards and the qualifications for rigid PCBs. These standards ensure that all PCBs meet essential performance and reliability criteria, including dimensional tolerance, electrical performance, and material specifications. Adherence to these standards helps ensure that PCBAs meet industry-wide expectations for quality.
RoHS (Restriction of Hazardous Substances) compliance is essential for PCBAs intended for markets in Europe and other regions that require adherence to environmental regulations. By ensuring that PCBAs do not contain harmful substances such as lead or mercury, manufacturers not only comply with regulations but also contribute to environmental sustainability. Meeting RoHS standards also ensures the safety and environmental friendliness of electronic products.
Quality control is crucial in PCBA manufacturing to ensure performance and reliability. Focusing on design verification, material selection, and thorough testing helps minimize defects and extend product life. Adhering to industry standards throughout production prevents failures and boosts customer satisfaction. Companies like Ruomei Electronic prioritize these quality control standards to deliver high-performance, dependable PCBA products that exceed expectations. Their products are designed to provide long-lasting value and reliability, ensuring client satisfaction.
A: PCBA quality control ensures that all printed circuit board assemblies meet performance, reliability, and safety standards. It involves design verification, material selection, soldering, and rigorous testing at every stage.
A: PCBA quality control prevents defects, reduces product failures, and enhances product reliability. It helps manufacturers deliver high-performance PCBA products that meet industry standards and customer expectations.
A: By identifying defects early and preventing costly rework, PCBA quality control improves production efficiency and reduces waste, ultimately lowering costs.
A: Common methods include electrical testing, Automated Optical Inspection (AOI), X-ray inspection for BGAs, and visual checks for solder joint quality. These ensure the board meets electrical and mechanical standards.
A: Industry standards like IPC-6012 for rigid PCBs and RoHS for environmental compliance guide manufacturers in maintaining consistent and high-quality production.
